The Unverified Patron table identifies patrons coming from known or trusted IP addresses who do not have to authenticate to access a database (as defined in the Forward Table and the Limit Network Access table). These IP addresses may be for in-library or on-campus computers. Use the Unverified Patron table to set up and maintain entries of known and trusted IP addresses and the associated alternate IP address to use for Multiple IP Support with Web Access Management.

The Unverified Patron table has two data fields that require information. For each entry you add in the Unverified Patron table, you must include:

IP Address Used: This entry is the alternate IP address to be sent to the vendor.

IP Pattern: The incoming, trusted IP address. You can enter IP addresses as single entries, "wildcarded" entries, or in a range with part of the IP string substituted ("globbed"). Unlike the Limit Network Access table, the Unverified Patron table requires decimal places and a range for each decimal place in the IP address (e.g., 123.6.*.*, 123.20.[0-2][05].*). You can have multiple IP patterns for the same IP address.

• Enter wildcarded entries as follows:
  123.234.*.* - This is the entire Class-B network at 123.234.
  123.234.245.* - This is the entire Class-C subnet at 123.234.245.

• Enter globbed entries as follows. You must use opening and closing square brackets ([ and ]) to successfully glob entries. You can combine globbed entries with wildcarded entries:

  123.456.7.[1-9][0-9] - This is the IP range from 123.456.7.10 to 123.456.7.99. Note that globbed ranges are inclusive. To exclude an IP address in a globbed range, account for the range up to the excluded IP address and then immediately after the excluded IP address. For example:

  123.456.7.[1-6][0-9] - this is the IP range from 123.456.7.10 to 123.456.7.69
  123.456.7.[7-7][0-8] - this is the IP range from 123.456.7.70 to 123.456.7.78
  123.456.7.[8-9][0-9] - this is the IP range from 123.456.7.80 to 123.456.7.99
  The IP 123.456.7.79 is excluded from the example above.

  NOTE

  Do not use leading zeros for wildcarding and globbing in this table. For example: 123.23.[000-025].* should be 123.23.[0-2][0-5].* 123.23.34.[002-009] should be 123.23.34.[2-9]

TIP : Do not enter the main system IP address or any of the alternate IP addresses listed in the "IP Address" prompt.

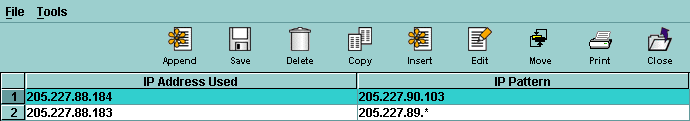

Use the following toolbar options used to edit the Unverified Patron table.

Append : Select this option to add a new entry to the end of the Unverified Patron table. The system will prompt you to key each data element for the new entry (see the description of the data elements above).

Save : To save your changes to the Unverified Patron table, choose Save. If you make changes to the Unverified Patron table and do not save those changes, the system prompts you to save before you exit the Unverified Patron table.

Delete : To delete an entry, select the entry and choose Delete. The deletion is not final until you save your changes.

Copy : To add a new entry that is similar to one that already exists in the table, you can copy the existing entry and then modify the appropriate data elements. The new entry is added to the end of the table.

Insert : To insert a new entry at the current selection point, choose Insert. On the Insert dialog, answer the prompts as needed. Choose OK once you are done or choose Cancel to cancel the changes. Choose Print to print the entry you are adding.

Edit : To edit the elements of an existing resource entry, select the entry and choose Edit. Modify your entry as needed. Choose OK once you are done or choose Cancel to cancel the changes. Choose Print to print the entry you are editing.

Move : To reorganize the entries, select the entry that you want to move and choose Move. You will then be prompted to enter a enter the row number and choose OK. The entry will be inserted at the selected point, and all succeeding entries will be shifted down one position.

Print : To print the Unverified Patron table, choose Print. Select the printer to use, then choose OK.

Close : Choose Close to close the Unverified Patron table.
